Ingress scope¶

The IngressClass Scope can be used to specify whether the Ingress instance is limited to the cluster level、the namespace level and the workspace level.

Use cases

• Platform-level Ingress instances can be set up in the same cluster that shares the same Ingress instance.
• Namespace-level Ingress instances can be set when a namespace use an exclusive Ingress instance for load isolation.
• The workspace has an exclusive Ingress instance for load isolation, which can be set up as a tenant-level Ingress instance.The workspace corresponds to the namespace under the current cluster where all Pods can receive requests distributed by this load balancer.

If there are different applications in the same namespace in the same cluster that need to use different Ingress instances, please refer to IngressClass.

Platform-level Ingress instances¶

When creating an Ingress instance with Ingress Scope enabled, the IngressClass resource is created with platform-level Ingress instances in the following two cases:

1. Only parameters is set but .spec.parameters.scope is not set
2. .spec.parameters.scope is set to cluster

# Example
apiVersion: networking.k8s.io/v1
kind: IngressClass
metadata:
  name: external-lb-1
spec:
  controller: example.com/ingress-controller
  parameters:
    scope: Cluster # Specify the scope of the Ingress instance as Cluster
    apiGroup: k8s.example.net
    kind: ClusterIngressParameter # Specify the Ingress instance Kind as ClusterIngressParameter
    name: external-config-1

Namespace-level Ingress instances¶

When creating an Ingress instance, with Ingress Scope enabled, and IngressClass set to .spec.parameters, and .spec.parameters.scope set to Namespace, then the Ingress Class of the Ingress instance is namespace level and the namespace to be used needs to be specified.

Namespace-level Ingress instances are equivalent to the fact that the admin delegates Ingress usage rights to a namespace, allowing for resource isolation.

#Example
apiVersion: networking.k8s.io/v1
kind: IngressClass
metadata:
  name: external-lb-2
spec:
  controller: example.com/ingress-controller
  parameters:
    scope: Namespace # Specify the scope of the Ingress instance as Namespace
    apiGroup: k8s.example.com
    kind: IngressParameter # Specifies that the Ingress instance Kind is IngressParameter
    namespace: default # Specify the namespace to be used
    name: external-config

Tenant-level Ingress instances¶

When creating an Ingress instance, if Ingress Scope is enabled, IngressClass is .spec.parameters, and .spec.parameters.scope is namespaceSelector, and the Label is workspace.ghippo.io/id: '1235' (where 12345 is the workspace ID of the specified workspace), then the Ingress instance's Ingress Class is tenant-level, which applies to all namespaces in workspace01 that are in the current cluster.

An Ingress instance at the tenant level is equivalent to an admin delegating rights to use Ingress to a workspace, thus achieving tenant resource isolation.

#Example
apiVersion: networking.k8s.io/v1
kind: IngressClass
metadata.
  name: external-lb-2
spec.
  controller: example.com/ingress-controller
  parameters.
    scope: Namespace # Specify the scope of the Ingress instance as Namespace
    apiGroup: k8s.example.com
    kind: IngressParameter # Specify the Ingress instance Kind as IngressParameter
    namespaceSelector: workspace.ghippo.io/id: '1235' # Specify the workspace ID to be used
    name: external-config

How to deploy platform/namespace-level Ingress instances?¶

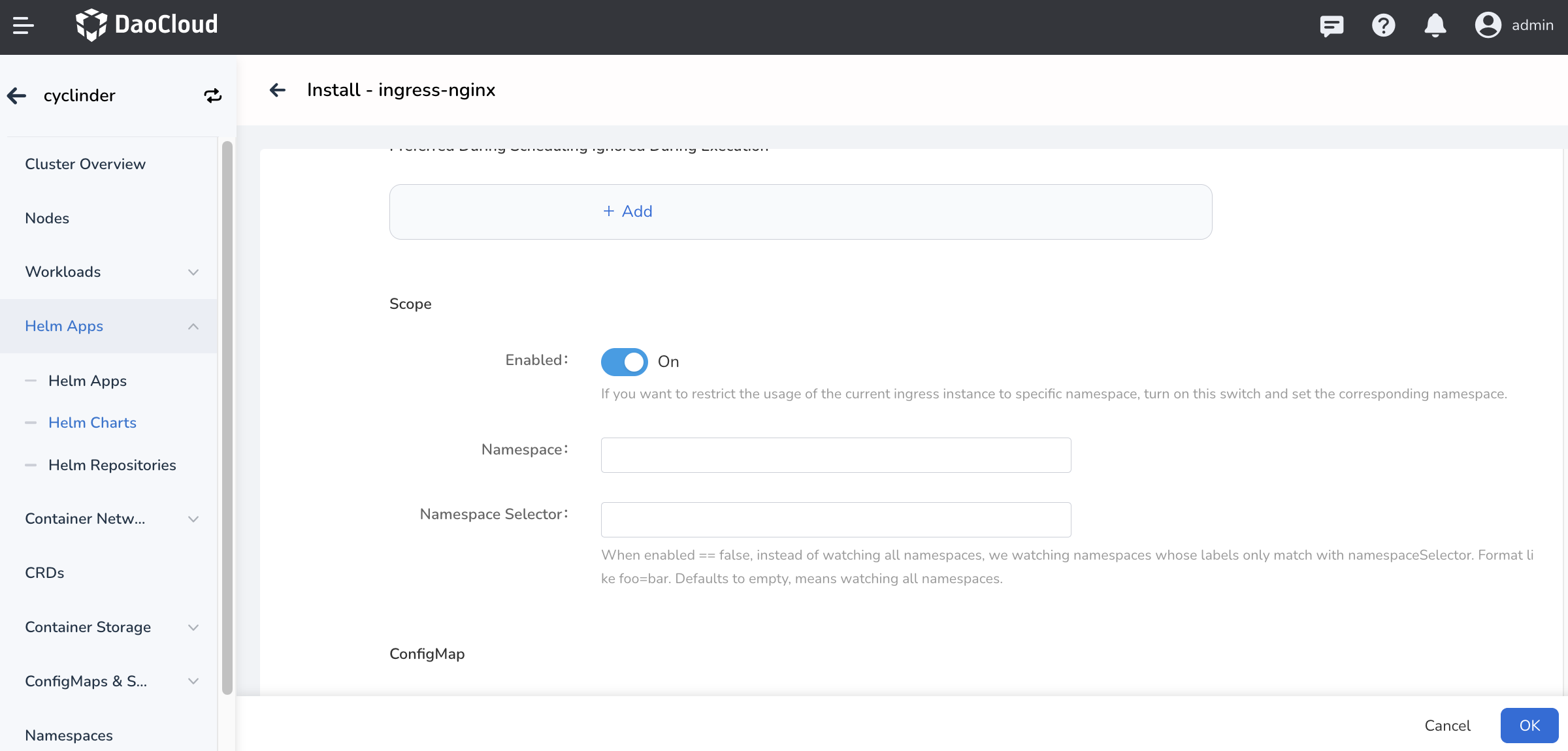

Different instances can watch different namespaces by specifying --watch-namespace. If ingress-nginx instances are installed via Helm, you need to enable and set platform/namespace level Ingress by specifying -controller.scope.enabled=true and -set controller.scope.namespace=$NAMESPACE.

1. Platform-level Ingress Instance: If scope is disabled when creating an Ingress instance, the Ingress instance created is platform-level.
2. Namespace-level Ingress instances: If you create Ingress instances with scope disabled and specify the corresponding namespace in namespace, the Ingress created is namespace-level.

The following example creates Ingress-nginx as a Default exclusive:

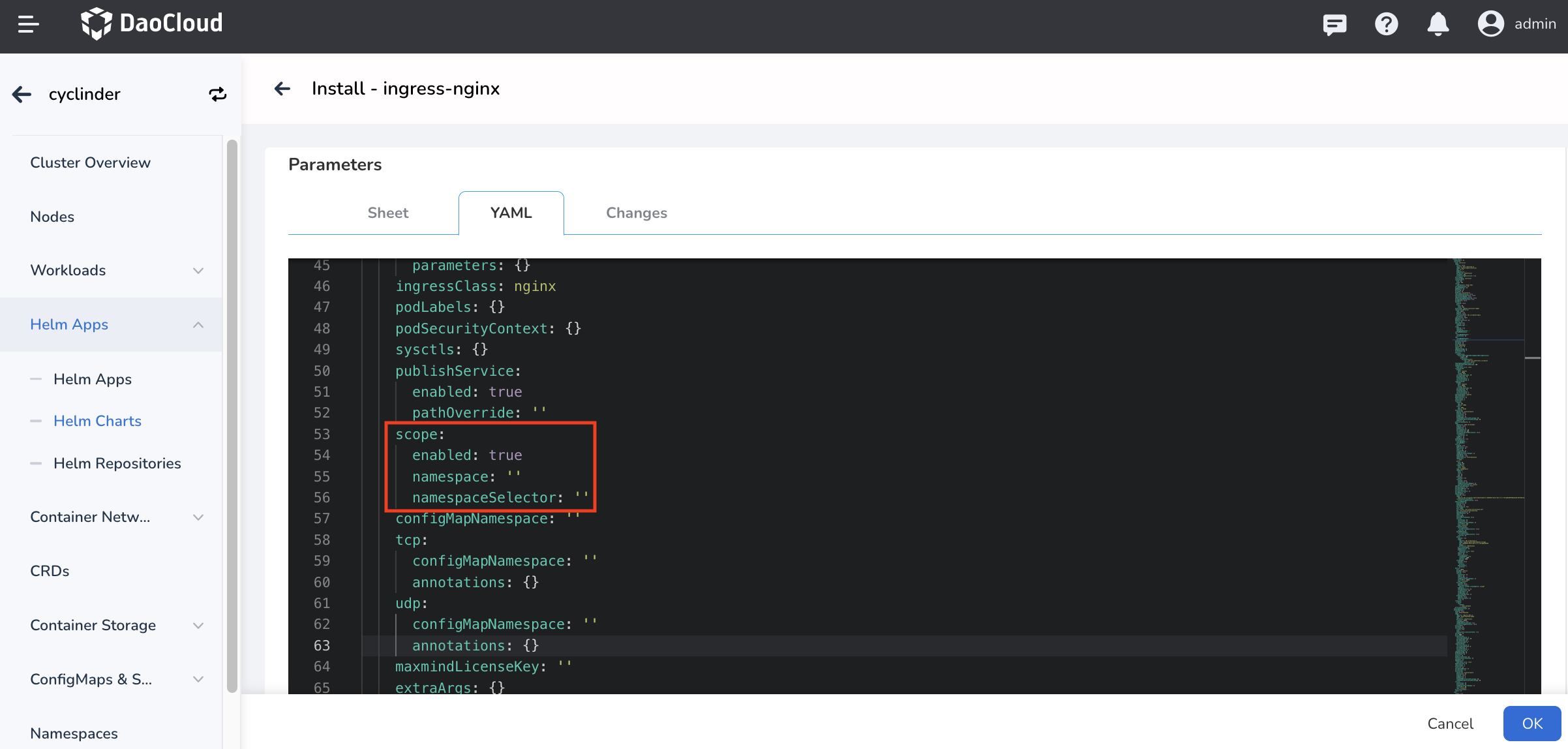

Configuration information in the corresponding value.yaml:

How to deploy tenant-level Ingress instances?¶

When you assigning a load balancer to a workspace during load balancer deployment, the workspace corresponds to the namespace under the current cluster where all Pods can receive requests distributed by this load balancer.

When deploying Ingress-Ngnix, specify kubernetes.io/metadata.name :workspace01 in the Namespace Selector, and the Ingress instance will be created exclusively for the workspace workspace01.

The configuration information in the corresponding value.yaml:

After the Ingress instance is deployed, you can create Ingress rules) in the corresponding namespace and select the Ingress Class for the corresponding instance to use.

For more information you can refer to scope.
